My first HEMTT - the Italeri LHS
AmTrac1833
#431
Visit this Community
Florida, United States
Member Since: February 20, 2014
entire network: 366 Posts
KitMaker Network: 3 Posts
Posted: Friday, August 19, 2016 - 07:37 AM UTC

Quoted Text

The find is fantastic, good job! - I wish we could find more items for sale like that with all that photo documentation!

However what you found this time is a Marine unit which differs greatly from the standard HEMTT. While all wheels are powered, steering is accomplished differently as the vehicle is hinged in the middle to steer like a big front-end loader. The really unusual thing about these trucks is you can "unhitch" the rear portion and drive the cab around like a conventual vehicle.

You can literally change the physical make-up of the vehicle to fit the mission at hand.

So quite different mechanically from thr standard HEMTT.



That is bad news for me. I want to do an LVS, need one to sit with my AAVs. I remember them being horrible rides, going cross country in 29 Palms I think I bounced my grape off the roof I don't know how many times. Springy freak'n seats.
Do you think it would be a horrendous challenge to take one of these HEMTT and convert it to an LVS Mk48? Your doing some incredible work with yours, my skill level is several notches below yours - and that may be a slight inflation of my skills.
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Friday, August 19, 2016 - 06:16 AM UTC
The find is fantastic, good job! - I wish we could find more items for sale like that with all that photo documentation!

However what you found this time is a Marine unit which differs greatly from the standard HEMTT. While all wheels are powered, steering is accomplished differently as the vehicle is hinged in the middle to steer like a big front-end loader. The really unusual thing about these trucks is you can "unhitch" the rear portion and drive the cab around like a conventual vehicle.

You can literally change the physical make-up of the vehicle to fit the mission at hand.

So quite different mechanically from thr standard HEMTT.
AmTrac1833
#431
Visit this Community
Florida, United States
Member Since: February 20, 2014
entire network: 366 Posts
KitMaker Network: 3 Posts
Posted: Friday, August 19, 2016 - 05:28 AM UTC
Here's your opportunity for the ultimate reference for the build.

Seriously, was window shopping on eBay and this listing has some good images for details

http://www.ebay.com/itm/Oshkosh-MK48-LVS-8x8-Military-USMC-/172309857092?forcerrptr=true&hash=item281e77c344:g:xiQAAOSwdzVXta7J&item=172309857092
Stickframe
#362
Visit this Community
California, United States
Member Since: December 01, 2013
entire network: 1,454 Posts
KitMaker Network: 14 Posts
Posted: Friday, August 19, 2016 - 04:19 AM UTC
Hi Mike, great build as always! I and evidently lots of others are enjoying the step by step! Good work

Cheers
Nick
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Friday, August 19, 2016 - 04:02 AM UTC

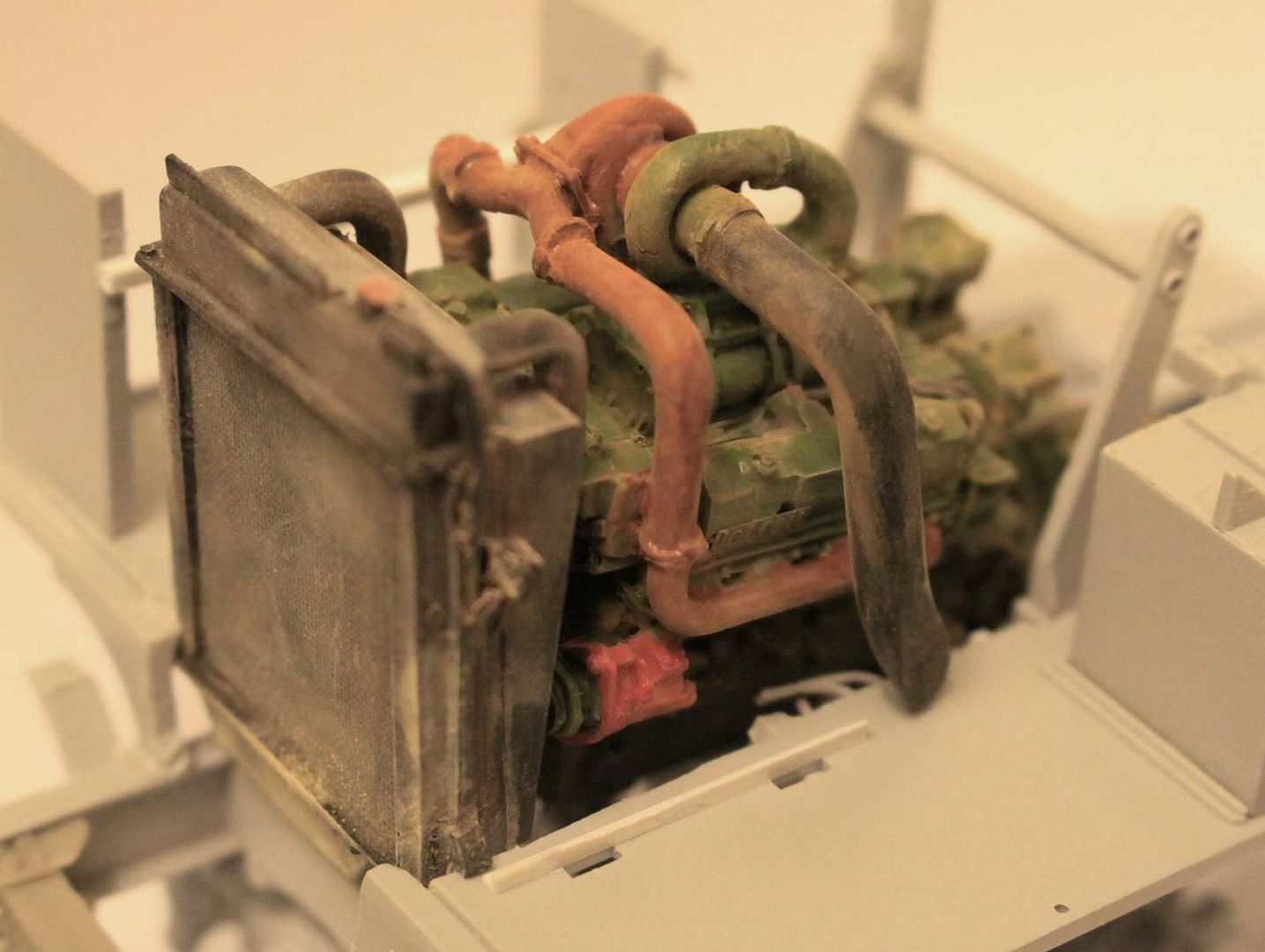

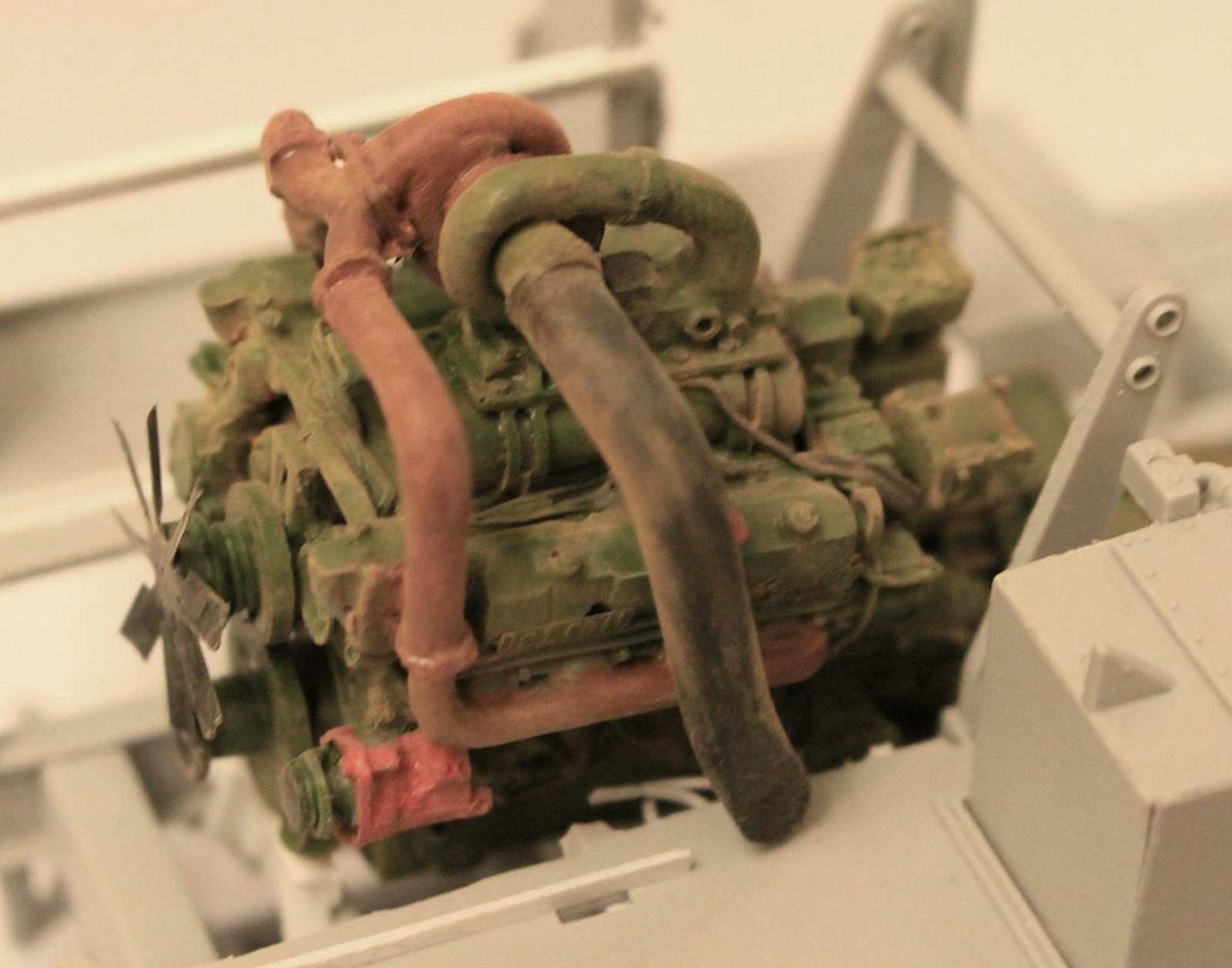

Someone said they really wanted to see this engine painted. Well I hope this meets with your approval. Base painting plus lite desert usage.



165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Friday, August 19, 2016 - 02:24 AM UTC
Thanks guys for the comments and compliments. It has crossed my mind more than a few times that maybe I am beating this horse to death but I do hope everyone's getting something good out of all this.

I know I am enjoying the build, I hope you are too!
Bigred69
Visit this Community
Armed Forces Europe, United States
Member Since: December 27, 2015
entire network: 260 Posts
KitMaker Network: 10 Posts
Posted: Friday, August 19, 2016 - 01:10 AM UTC
Hi Mike, I an going to fill this build away for future reference, when I put my HEMMT together. Thanks for all the information you have put out.
Ronnie
Taylornic
Visit this Community
Tennessee, United States
Member Since: January 10, 2005
entire network: 337 Posts
KitMaker Network: 0 Posts
Posted: Thursday, August 18, 2016 - 11:05 PM UTC
Good work!
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 10:08 PM UTC

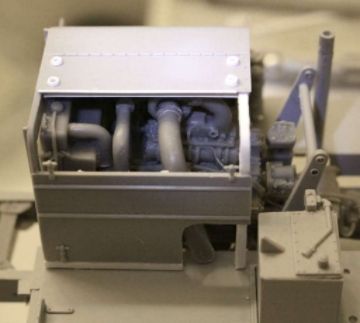

Going to have to lengthen those top radiator hoses just a bit. I have already lengthened the exhaust pipe coming out of the turbo before it gets to the muffler.
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 09:43 PM UTC


165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 08:29 PM UTC


I finally went with cutting both the air compressor and the hydraulic pump in half. I think they look much more correct now.

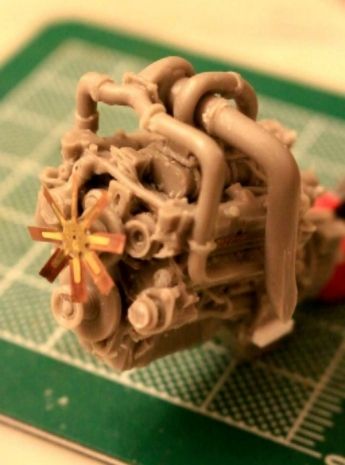

Also I thought I would take a picture of that very nicely etched engine fan because once the radiator is installed we will probably never see it again.
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 08:27 PM UTC

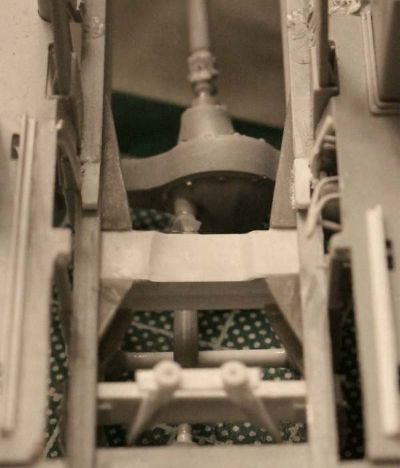

For the sake of full disclosure I did want to add that I had to modify the main front frame H-member I beam to achieve the angle and height I wanted on the engine.

165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 08:18 PM UTC
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 07:35 AM UTC

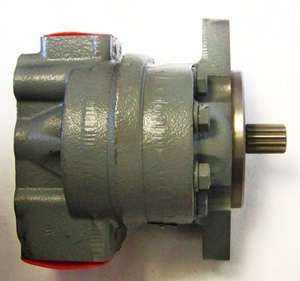

Typical Hydraulic Pump:



What you are looking at is only about seven inches tall but can put out enough force to run the recovery winch or the LHS equipment!
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 07:23 AM UTC

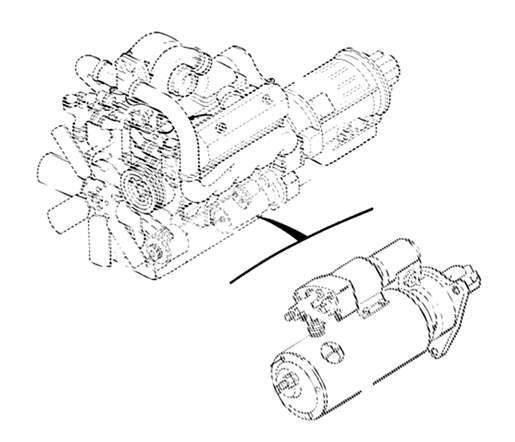

Starter Assembly:

165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 07:08 AM UTC
Partial exploded drawing of HEMTT air compressor.



165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 06:50 AM UTC
Typical standard HEMTT transmission:






Must be a rebuild. (Photo by BlackManistan)
Taylornic
Visit this Community
Tennessee, United States
Member Since: January 10, 2005
entire network: 337 Posts
KitMaker Network: 0 Posts
Posted: Thursday, August 18, 2016 - 06:26 AM UTC
I agree on the compressor and the p/s pump 100 percent. As for the tranny, I am not saying its wrong because I honestly dont have experience with it.

It seems the Hemtt had 2, possibly 3 trannies during the upgrades. It just seems to me that the Trumpeter trans looks much closer to the photos I have seen on the net associated with the earlier Hemtt.
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 06:18 AM UTC
Taylor, my thought exactly - cut the compressor in half and make it look normal!

Also the other mystery device looks like two hydraulic pumps connected end to end. I was thinking of cutting that in half also.


Again I cannot figure out just what is going on with all that extra mechanism on the tranny. It looks great but it looks wrong.
Taylornic
Visit this Community
Tennessee, United States
Member Since: January 10, 2005
entire network: 337 Posts
KitMaker Network: 0 Posts
Posted: Thursday, August 18, 2016 - 06:09 AM UTC
Never saw a compressor like that. Looks like it should be cut in half before you install it. That mystery devise is a mystery. Lol

All I have ever seen is a simple twin cylinder compressor bolted to the back of the accessory drive.

I cant help with the tranny question, sorry. But, for the earlier Hemtt it kinda looks like the Trumpeter tranny looks more right.
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 05:38 AM UTC

4 cylinder air compressor (I think) . . . . . . . . . . . . Mystery device


This is how they want you to put them together.


And they tell you to put them here.

Also; what is all that stuff on the transmission? Never saw anything like that but if I had to guess it is either some sort of cooler or an electrical generator????

I think now that maybe the person who originally mastered this engine model was not looking at a HEMTT reference, they were looking at a gen-set reference. An emergency back-up electrical generator set that happen to use the same engine as the HEMTT.
M4A1Sherman
Visit this Community
New York, United States
Member Since: May 02, 2013
entire network: 4,307 Posts
KitMaker Network: 20 Posts
Posted: Thursday, August 18, 2016 - 04:42 AM UTC

Quoted Text

OK, another "accessory gearbox" question. I am guessing the following is a mistake on Real Model's part but I need to check with you guys. RM mounts the air compressor on the right rear corner of that gearbox which is OK but it is a DOUBLE compressor - it has FOUR cylinders!

It is clearly supposed to be two compressors on a common shaft. So, was there ever a HEMTT that either needed a high enough volume of brake air to need two air compressors or a HEMTT that needed a higher psi so they would run two compressors in a two stage arrangement to produce a higher output air pressure?



Hi, Mike!

Been following your build- GREAT STUFF! Someday, I'll get the chance to build my HEMTT Fuel Tanker! I bought it about 10 years ago, but have been too busy with other stuff...
Taylornic
Visit this Community
Tennessee, United States
Member Since: January 10, 2005
entire network: 337 Posts
KitMaker Network: 0 Posts
Posted: Thursday, August 18, 2016 - 04:16 AM UTC

Quoted Text

OK, another "accessory gearbox" question. I am guessing the following is a mistake on Real Model's part but I need to check with you guys. RM mounts the air compressor on the right rear corner of that gearbox which is OK but it is a DOUBLE compressor - it has FOUR cylinders!

It is clearly supposed to be two compressors on a common shaft. So, was there ever a HEMTT that either needed a high enough volume of brake air to need two air compressors or a HEMTT that needed a higher psi so they would run two compressors in a two stage arrangement to produce a higher output air pressure?



Can you post a photo of the part? I have never seen what it seems you are describing. My experience is from the OTR trucks I drove in the past with the 6v and 8v92 engines only.
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 03:05 AM UTC
OK, another "accessory gearbox" question. I am guessing the following is a mistake on Real Model's part but I need to check with you guys. RM mounts the air compressor on the right rear corner of that gearbox which is OK but it is a DOUBLE compressor - it has FOUR cylinders!

It is clearly supposed to be two compressors on a common shaft. So, was there ever a HEMTT that either needed a high enough volume of brake air to need two air compressors or a HEMTT that needed a higher psi so they would run two compressors in a two stage arrangement to produce a higher output air pressure?
165thspc
#0
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 9,095 Posts
KitMaker Network: 174 Posts
Posted: Thursday, August 18, 2016 - 02:42 AM UTC
Keith, I don't mind you posting your work on the cab, not one bit. First of all the more the merrier! Second, I ordered an etch cabin detail set myself and having seen your advance information on your build will help me (I hope) to do a better job building mine.
