Hi,

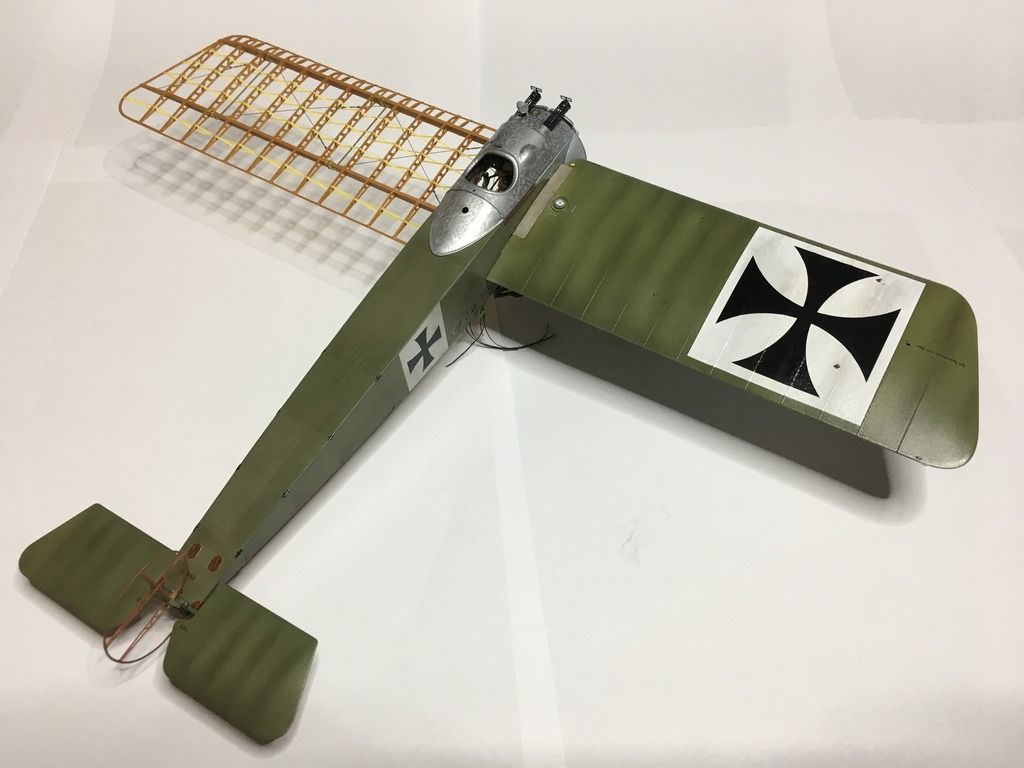

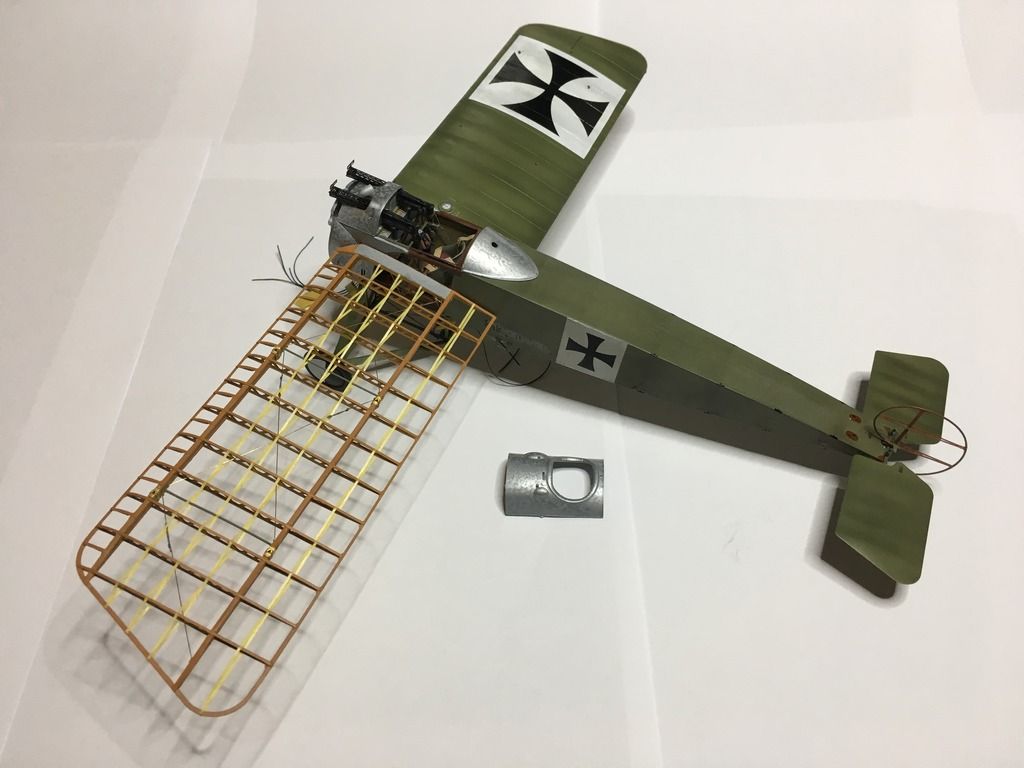

Added turned metal effect on the aluminium parts.

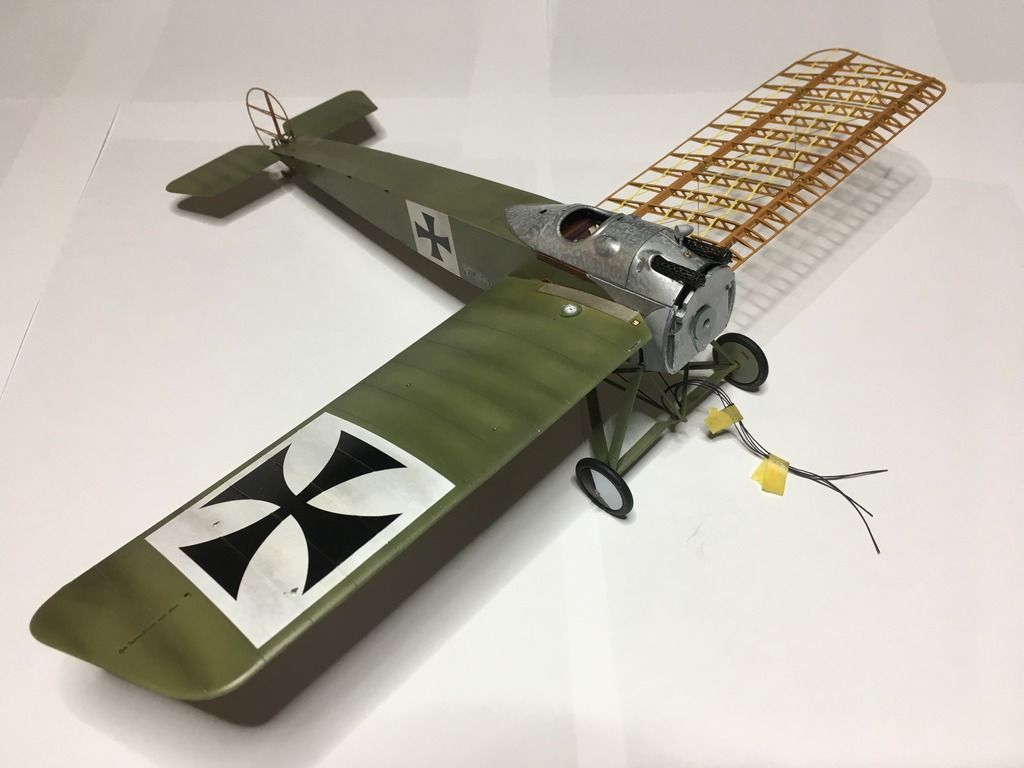

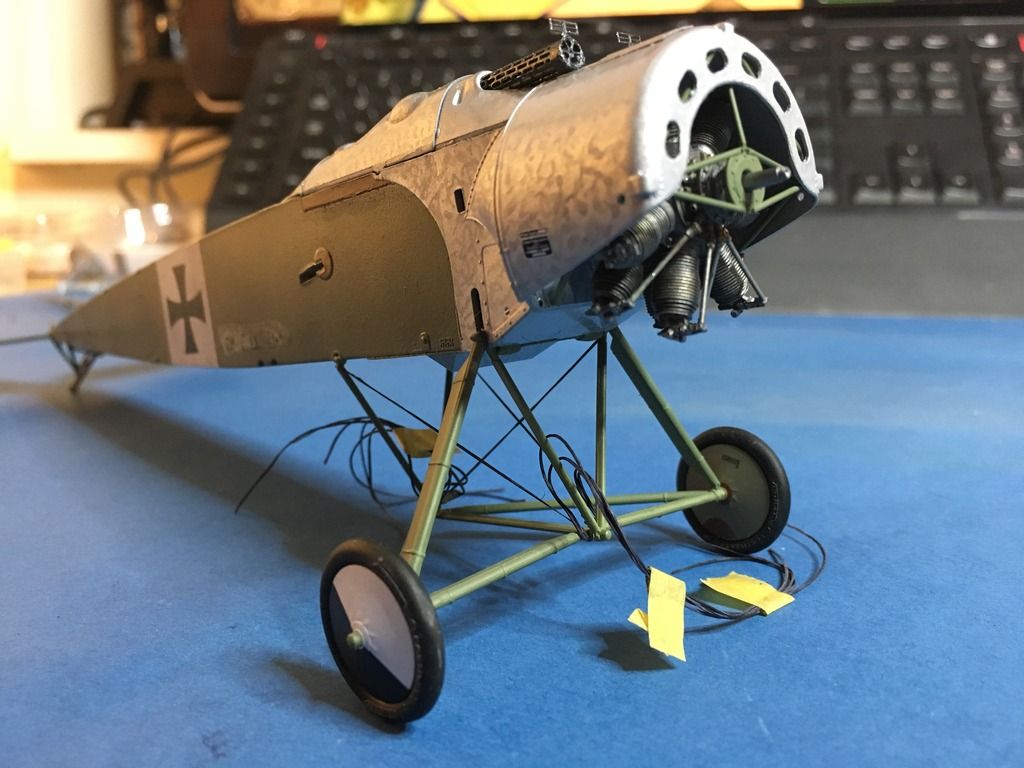

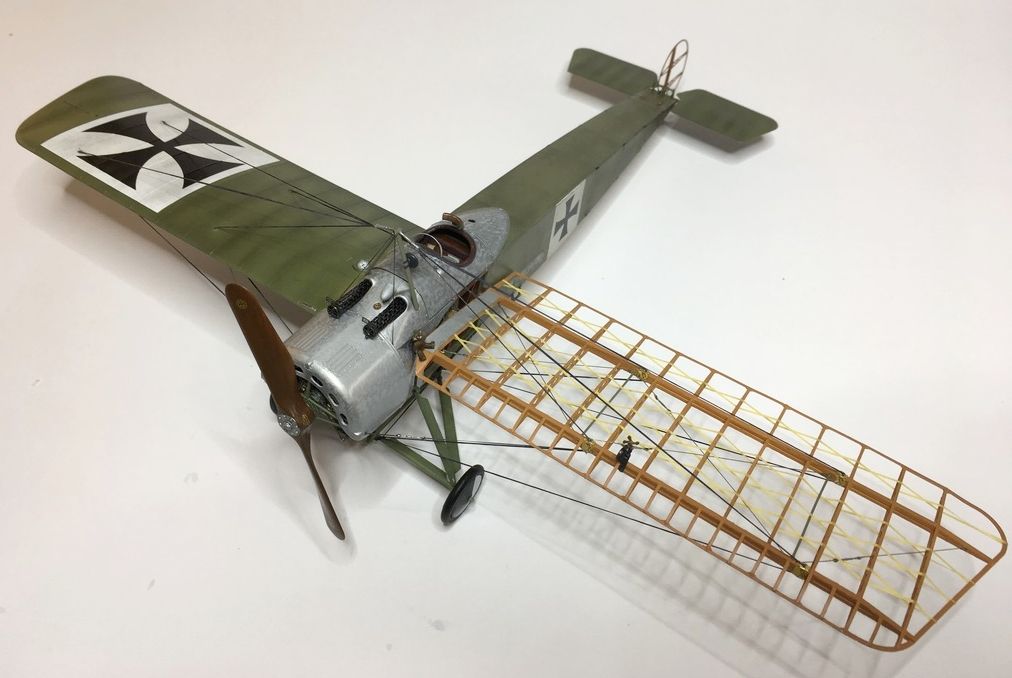

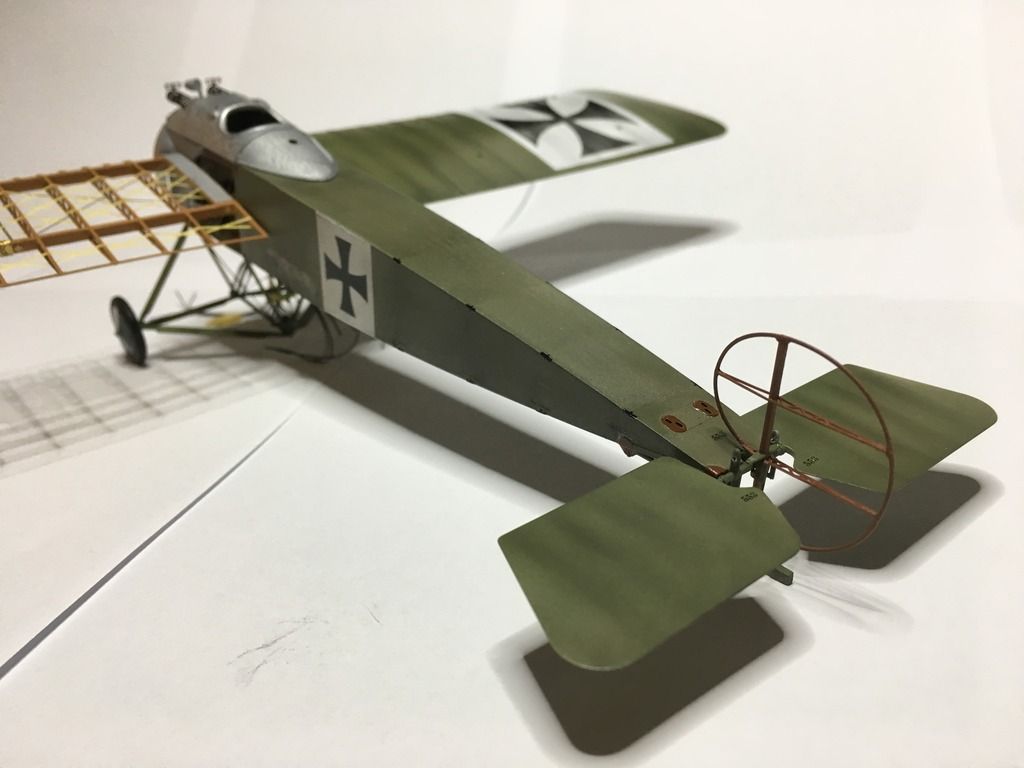

Undercarriage done with preliminary rigging. Decals partially added.





Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Friday, January 20, 2017 - 07:05 PM UTC

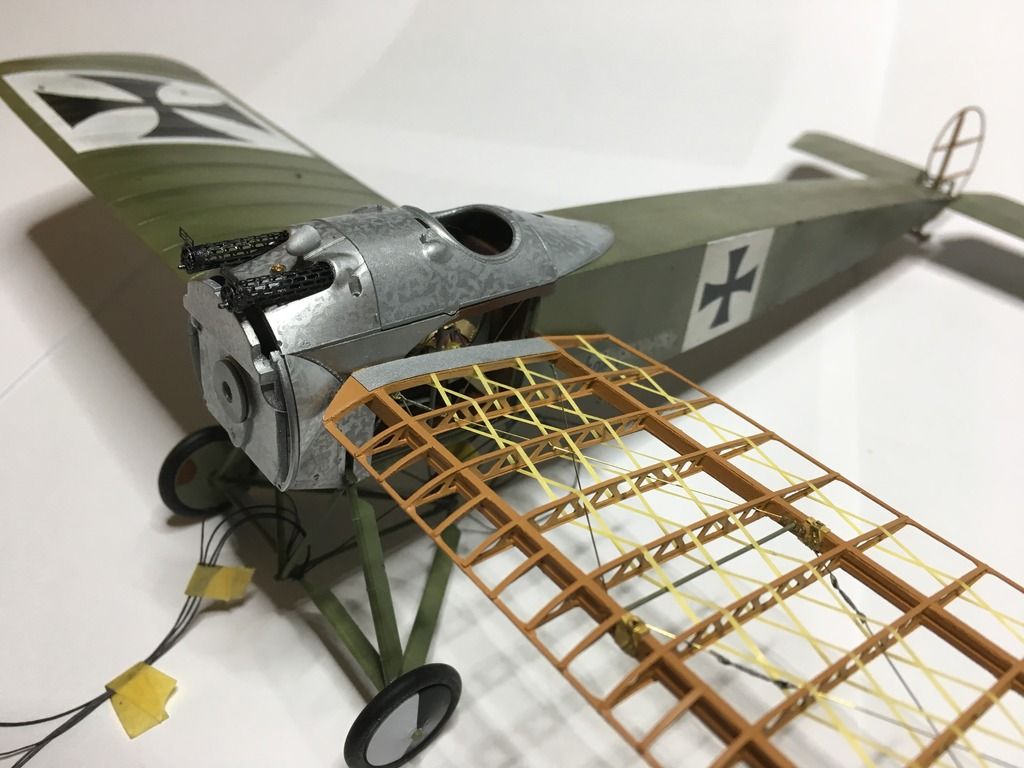

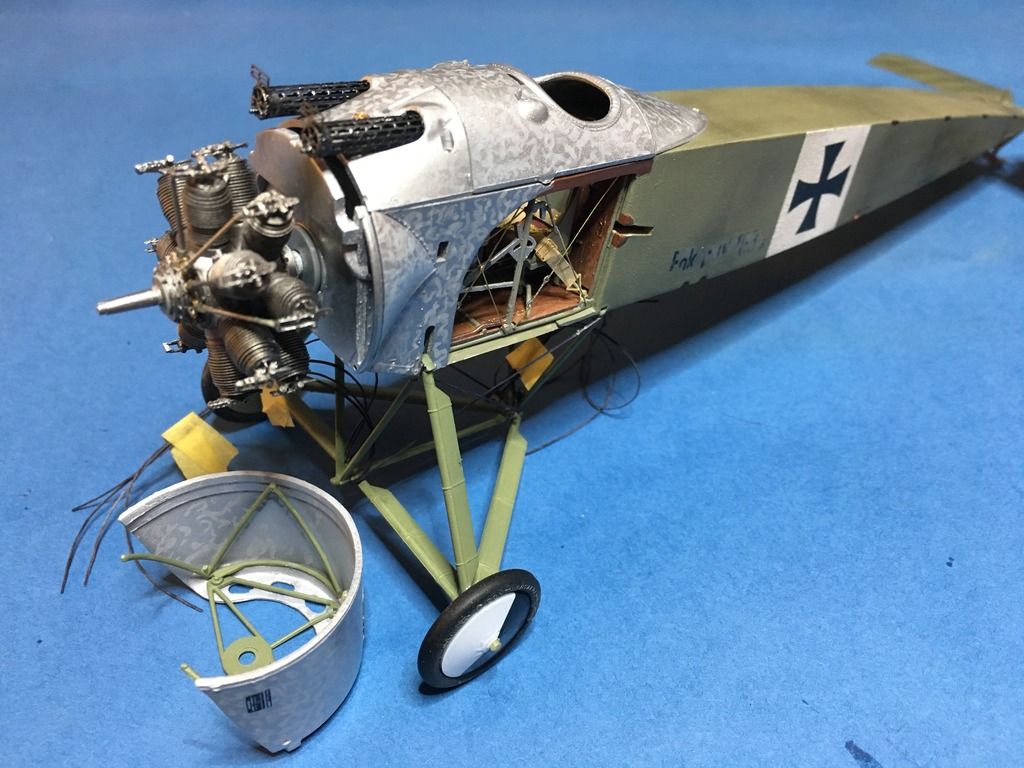

Dryfitted with engine and cowling (by Aviattic) - seems like a nano-fit will have to work it out somehow.



Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Sunday, January 22, 2017 - 01:44 AM UTC
Hi guys,

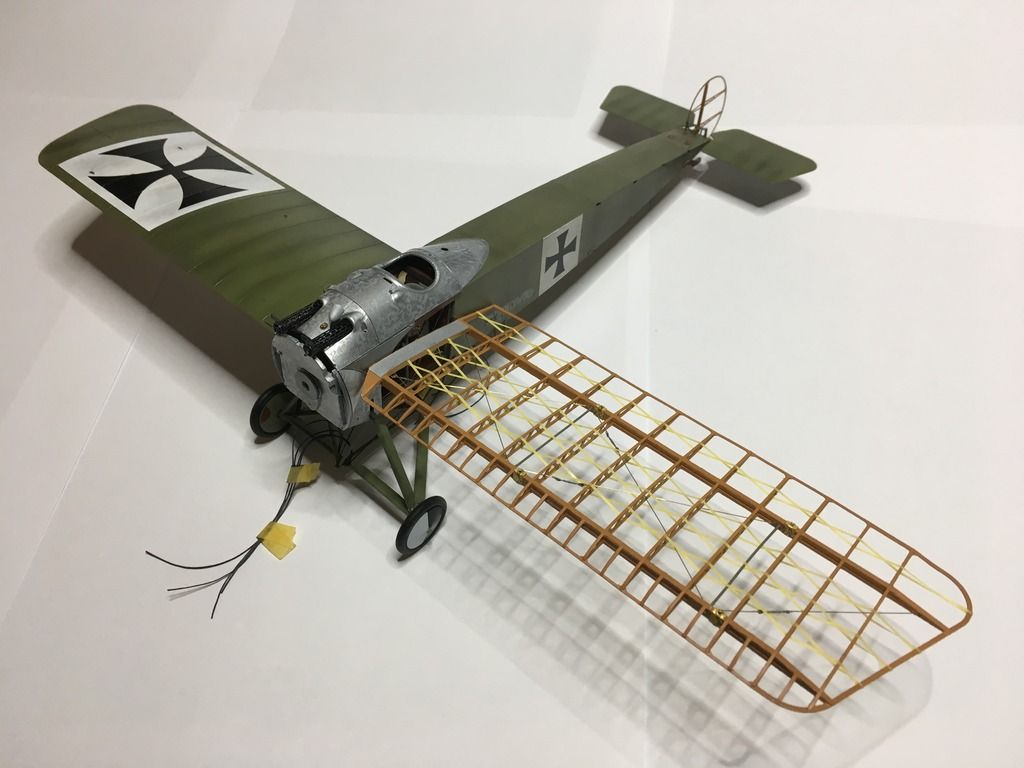

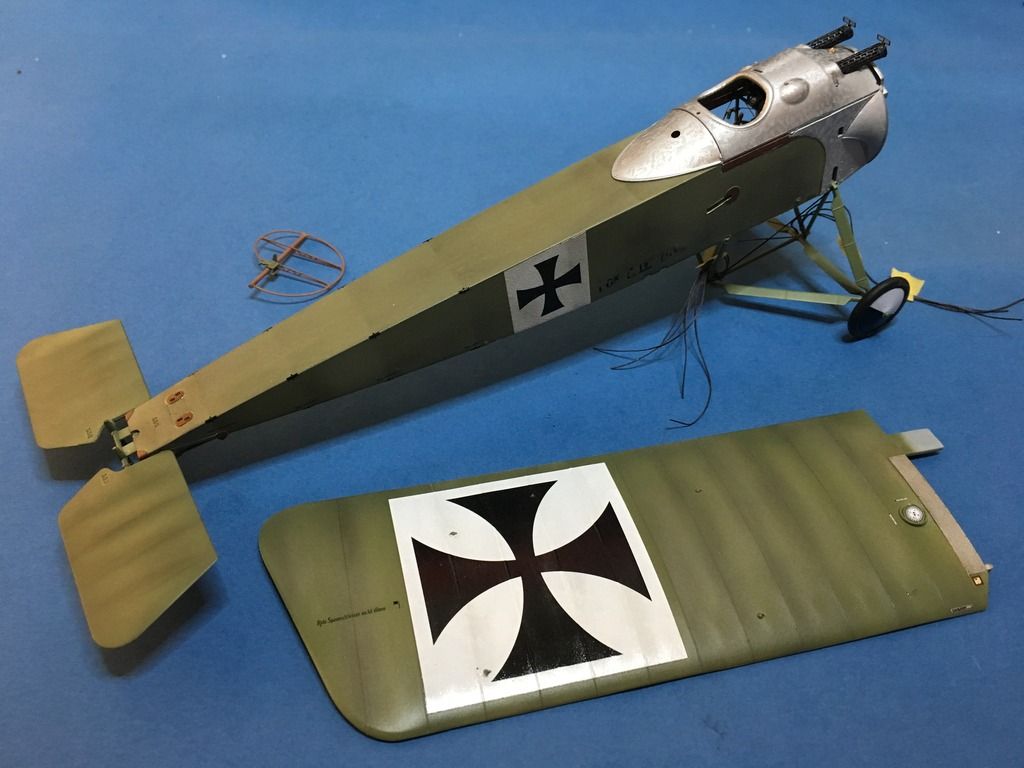

Got some spare time to finish main parts, so wings are done and assembled, elevator and rudder also attached to the fuselage.
Next step - rigging...

See ya soon,
Bart











sithman
Visit this Community
Ontario, Canada
Member Since: January 04, 2017
entire network: 2 Posts
KitMaker Network: 0 Posts
Posted: Sunday, January 22, 2017 - 02:32 AM UTC
FANTASTIC! and inspiring!

I have one question I have been wondering about.

A lot of wwi Model builders seem to lighten the low points and darken the highpoints on the wings of their aircraft as you have done as well. I thought (sorry!, I'm from an armour background) you darkened the low areas and lighten the high.

I ask because it looks good and I am about to embark on a couple of biplanes and really have no idea about shading and weathering these craft.


Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Sunday, January 22, 2017 - 03:44 AM UTC

Quoted Text


A lot of wwi Model builders seem to lighten the low points and darken the highpoints on the wings of their aircraft as you have done as well. I thought (sorry!, I'm from an armour background) you darkened the low areas and lighten the high.

I ask because it looks good and I am about to embark on a couple of biplanes and really have no idea about shading and weathering these craft.



Hi Thomas!
I'm sure you are aware what subject you are touching here... just kidding
Generally you have to think what do you want to represent and how. The difference between armour and WWI crafts is simply the material you are trying to model through painting and weathering. Opposite to metal parts in armour you are dealing here with canvas or fabric (mostly cotton and cellulose nitrate dope) enclosing wooden or plywood structures. I can comment only on my approach, and I'm far from saying that's the right one or the best looking.
So I start with general idea of what condition of the machine I'll be modelling. Generally I'm not fond of 'eavy weathering craze as in my opinion it's quite hard to achieve good results in scale and the amount of details you can loose during this process is too much for me I rather treat weathering as a tool to bring up some interesting characteristics of the surfaces and details.
But coming back to your question - if you imagine that wooden structure covered by fabric and then think how light will affect it. Of course it depends on the thickness of the fabric and with what was it covered, but generally it's going to be darker in the parts of the structure touching to fabric and lighter in areas with no structure beneath (due to light coming through). On top of that I'm thinking of weather conditions and if we imagine rainy and muddy environment it's also going to affect the looks of the model in similar way. Places where structure touches canvas will tend to dry slower and thus attract more dust and dirt. Of course that's applicable to lets say damp conditions On the other hand you can have dry environment and there the situation changes. Those parts of structure touching to canvas are more prone to weathering (don't know if it's correct term: frayed) so you could accentuate those by making them lighter.
Generally I follow the motto that model should make you happy and fun to work with

Cheers,
Bart
sithman
Visit this Community
Ontario, Canada
Member Since: January 04, 2017
entire network: 2 Posts
KitMaker Network: 0 Posts
Posted: Sunday, January 22, 2017 - 09:35 PM UTC
Thank you so muchh for taking time to answer my noob question!

You explained it very well and helps me to understand better what I should be trying to achieve!

I too am not a fan of over weathering as I don't think it is realistic (just my pinion)

Again thank you! I can't wait to try it on my little Dr1 and Albatros!


Thomas
rdt1953
Visit this Community
New Jersey, United States
Member Since: February 06, 2015
entire network: 1,098 Posts
KitMaker Network: 44 Posts
Posted: Sunday, January 22, 2017 - 11:04 PM UTC
Bart -

Thanks for sharing this - I've been watching from the start- absolutely beautiful workmanship.
Cheers - Richard
lespauljames
Visit this Community
England - South West, United Kingdom
Member Since: January 06, 2007
entire network: 3,661 Posts
KitMaker Network: 399 Posts
Posted: Monday, January 23, 2017 - 02:13 AM UTC
Bart, a masterful work. I love the aluminium effect you have achieved and the subtleties of your painting job. Bravo. The comments regarding the weathering are food for thought and have made me think a bit more about what I'm doing and why. Looking forward to the rest. J
Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Monday, January 23, 2017 - 02:30 AM UTC

Quoted Text

Thank you so muchh for taking time to answer my noob question!

You explained it very well and helps me to understand better what I should be trying to achieve!

I too am not a fan of over weathering as I don't think it is realistic (just my pinion)

Again thank you! I can't wait to try it on my little Dr1 and Albatros!


Thomas



Thomas, no need to thank - that should be the place for such discussions
Please share your work with these early birds!

Bart
Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Monday, January 23, 2017 - 02:33 AM UTC

Quoted Text

Bart -

Thanks for sharing this - I've been watching from the start- absolutely beautiful workmanship.
Cheers - Richard



Richard thank you for following the build still quite a daunting task ahead with rigging. On the other hand sparse free time gives the opportunity to think some solutions over

Bart
Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Monday, January 23, 2017 - 02:36 AM UTC

Quoted Text

Bart, a masterful work. I love the aluminium effect you have achieved and the subtleties of your painting job. Bravo. The comments regarding the weathering are food for thought and have made me think a bit more about what I'm doing and why. Looking forward to the rest. J



Thanks James!
JackFlash
Visit this Community
Colorado, United States
Member Since: January 25, 2004
entire network: 11,669 Posts
KitMaker Network: 290 Posts
Posted: Thursday, January 26, 2017 - 02:17 PM UTC
Nice work.
CaptnTommy
Visit this Community
Connecticut, United States
Member Since: October 26, 2009
entire network: 424 Posts
KitMaker Network: 0 Posts
Posted: Friday, January 27, 2017 - 12:49 AM UTC
Interesting your reply on weathering...

Having dealt with the current fabric (composites) in desert environments the leading edge would first wear off the paint/dope then would begin to wear through the fabric. (Composites PILL like a sweater) - daily inspections, before flight, will include the leading edges, regardless of the aircraft. I suppose, Extra thicknesses of fabric would be placed on the leading edge to lengthen the time to replacement. On H-60 helicopters Scotch packing tape was used at the beginning of Desert Storm, later a special, thicker tape was used. I am not sure what they use now.

The Turks and RAF Flew in the SAME location.

Enjoying the build, agree to light weathering on fabric.

Captn Tommy
Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Wednesday, February 01, 2017 - 03:14 AM UTC
Hi Tom,
Thanks for sharing your experiences! Just wondering if by any chance you might have photos of such weathered fabric? Might be interesting to ponder...

Bart
Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Wednesday, May 03, 2017 - 08:21 PM UTC
Hi,

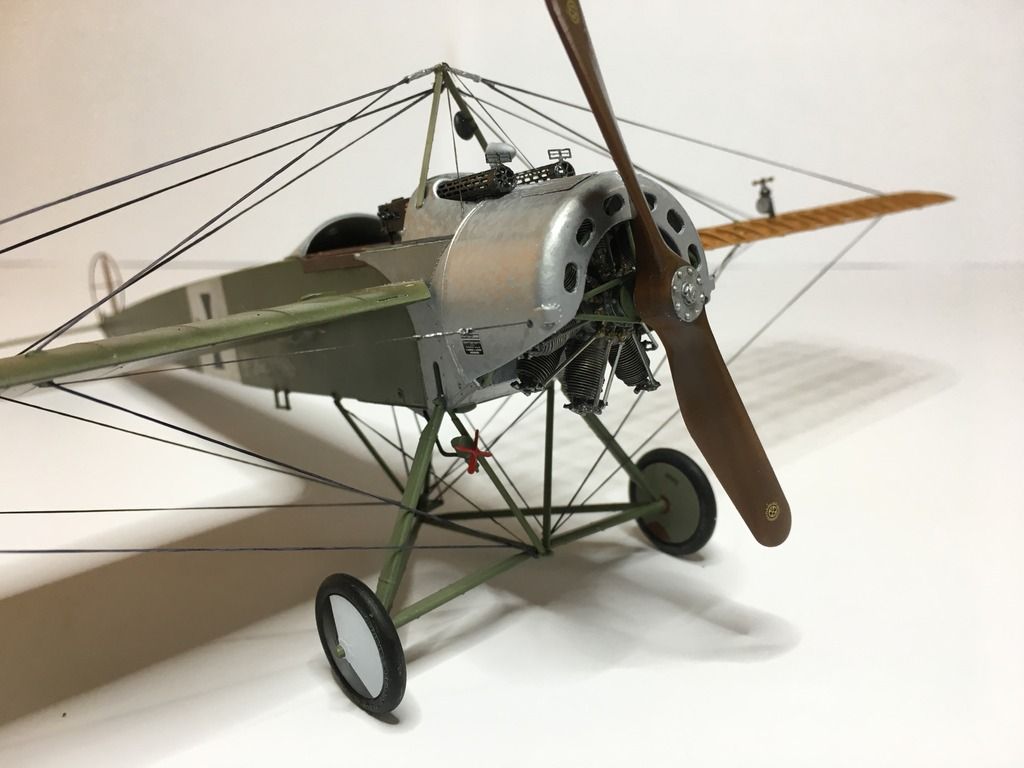

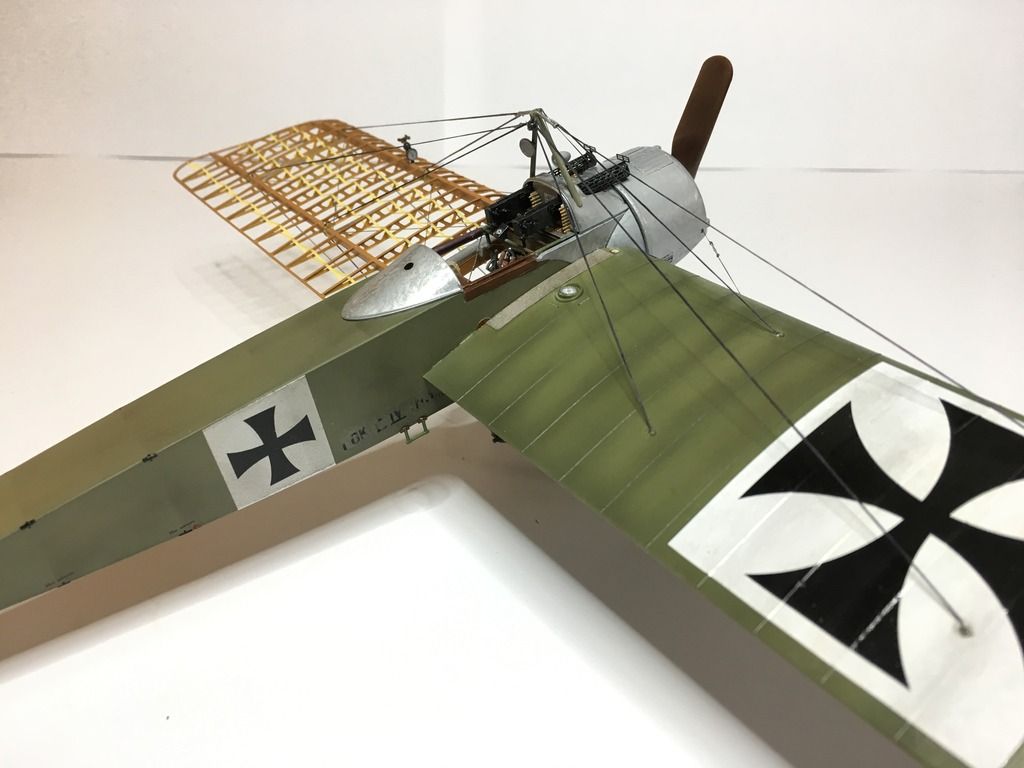

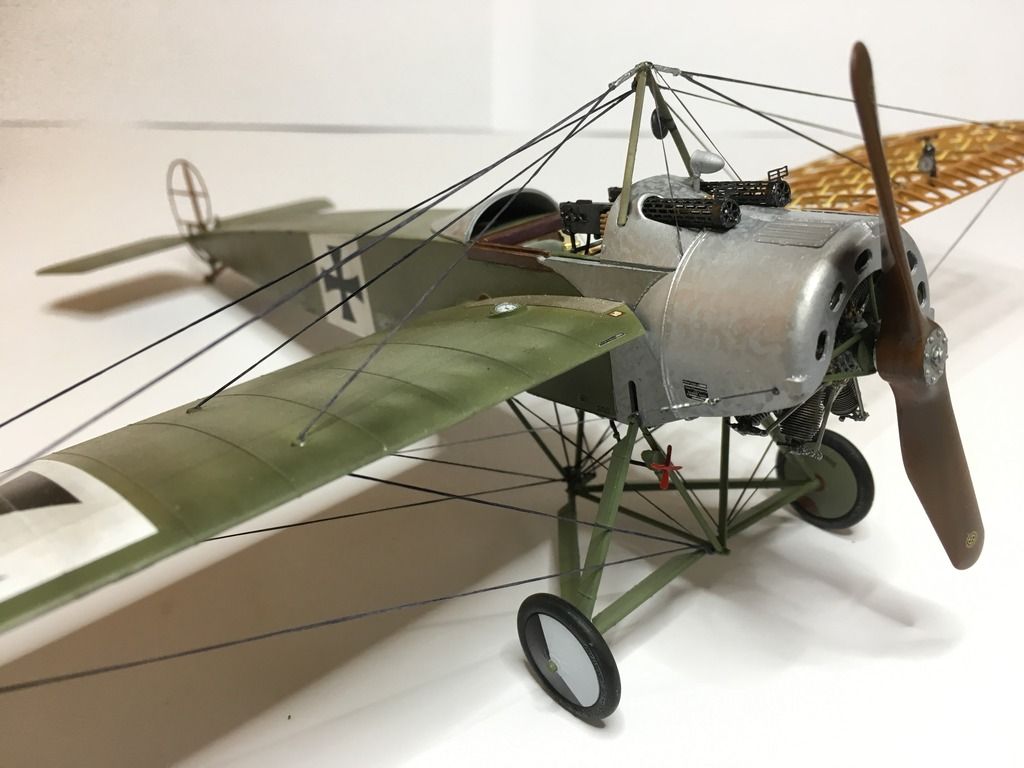

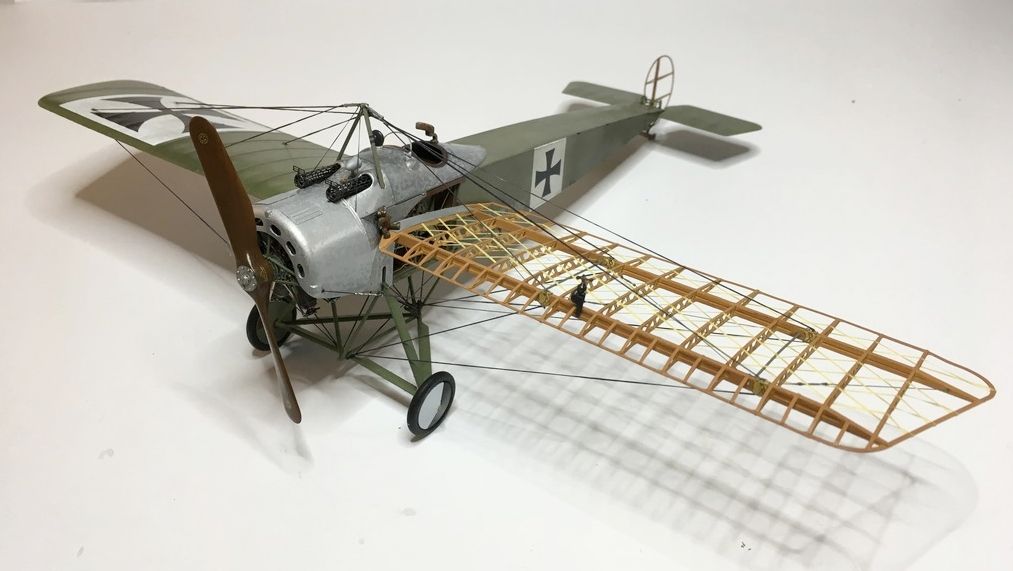

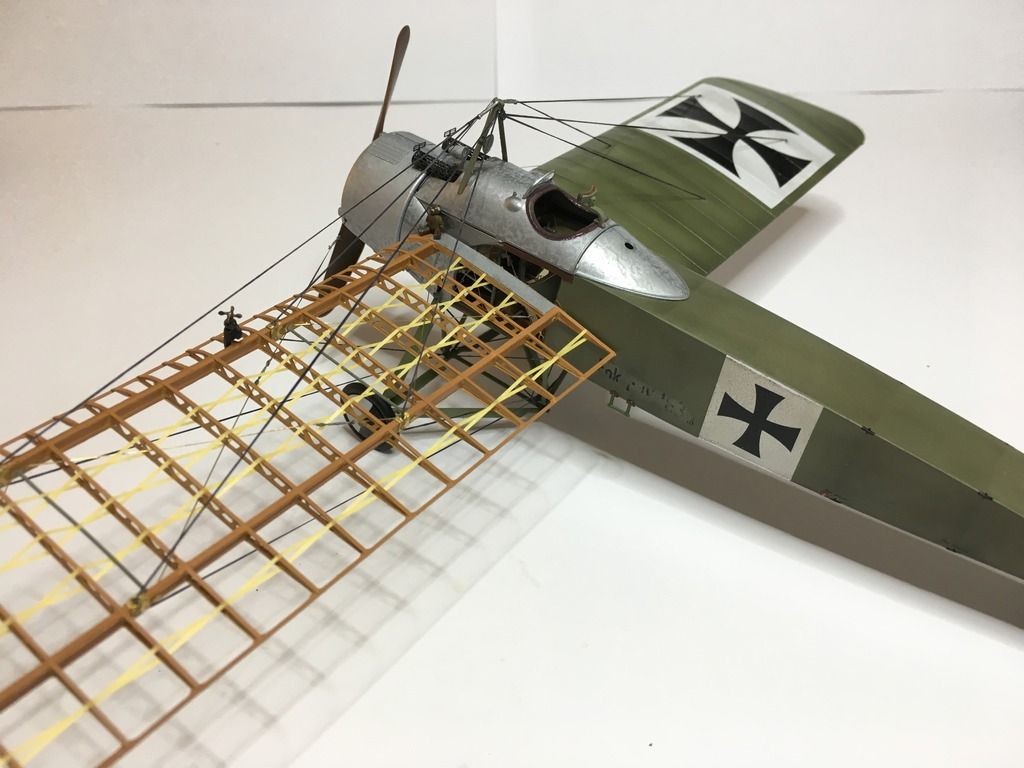

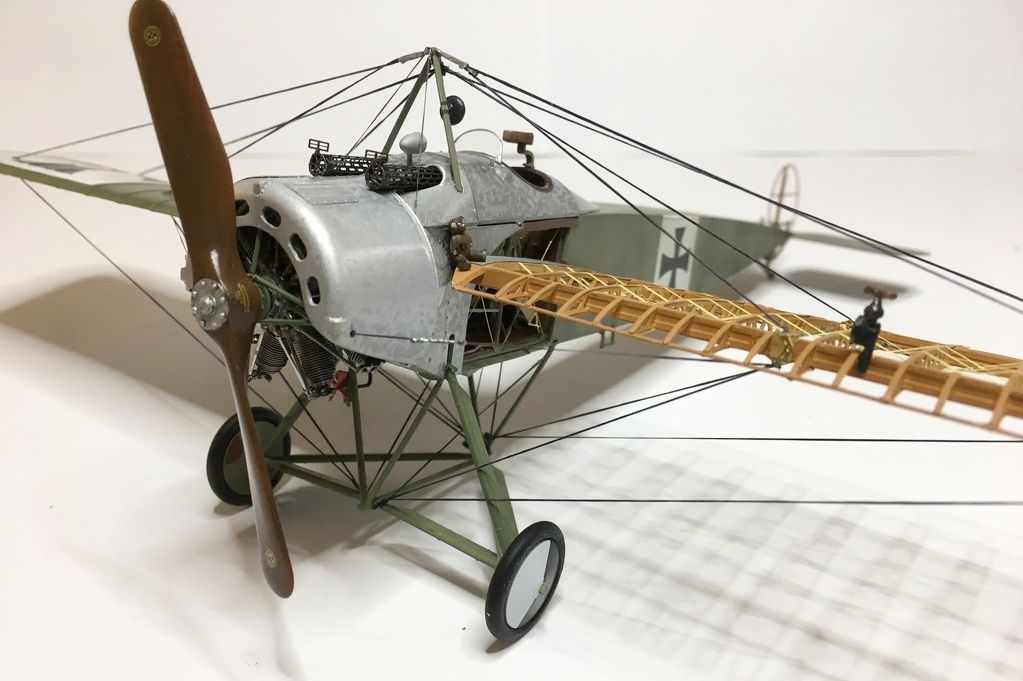

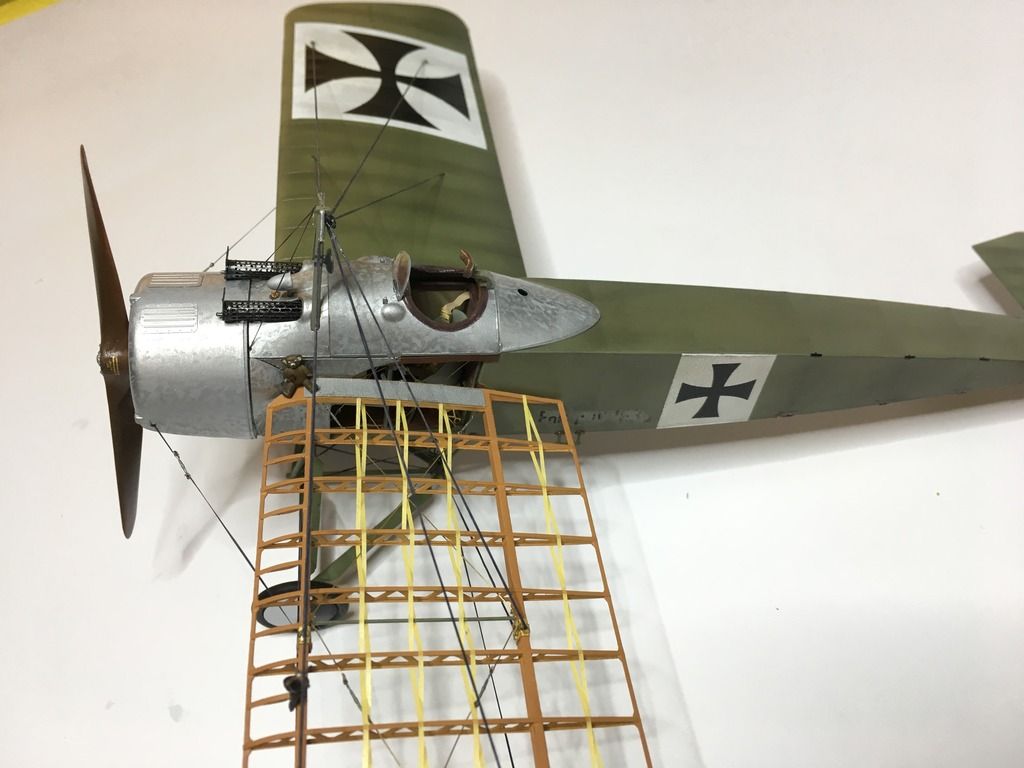

after a rather long break I finally made it to the closure of the E.IV project.

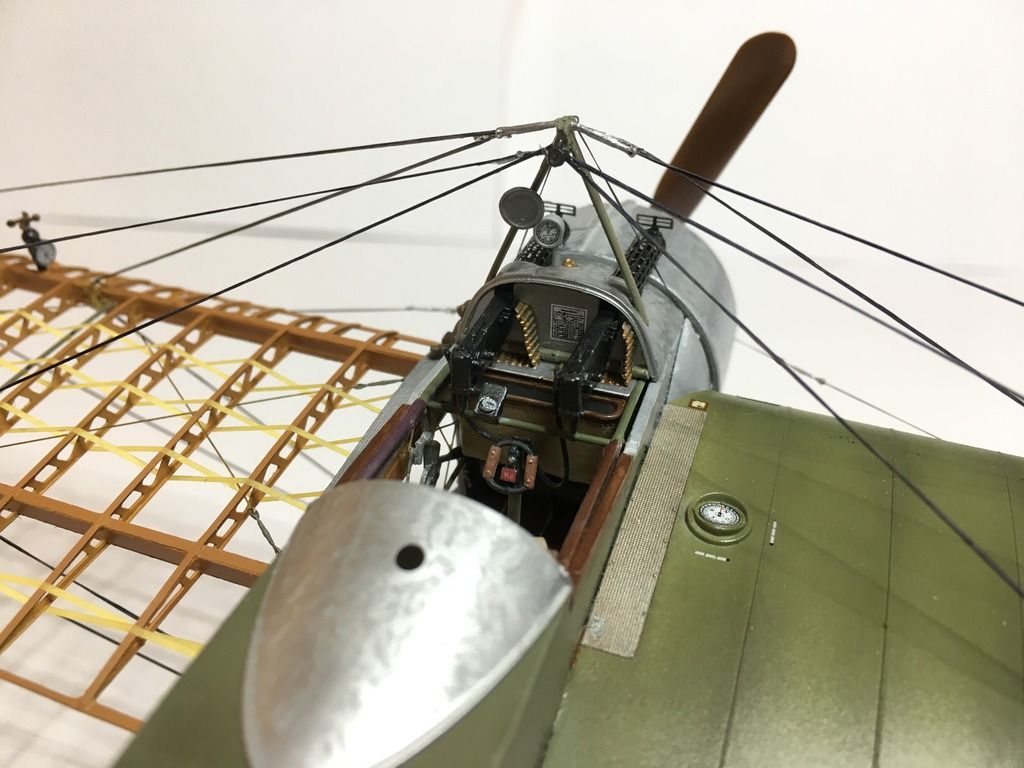

Did finish the rigging, engine and some other details.
Still to be done is the final light weathering.





Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Wednesday, May 03, 2017 - 08:23 PM UTC




Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Wednesday, May 03, 2017 - 08:24 PM UTC




Scrodes
Visit this Community
Ontario, Canada
Member Since: July 22, 2012
entire network: 771 Posts
KitMaker Network: 6 Posts
Posted: Wednesday, May 03, 2017 - 10:30 PM UTC
Oh wow, well done. Kept getting better with each post!


Sorry if I missed it, but how did you get that effect on the aluminum?
Merlin
Staff MemberSenior Editor
AEROSCALE
#017
Visit this Community
United Kingdom
Member Since: June 11, 2003
entire network: 17,582 Posts
KitMaker Network: 2,250 Posts
Posted: Thursday, May 04, 2017 - 12:09 AM UTC
Hi Bart

Simply fantastic!

All the best

Rowan
MerlinV
Visit this Community
Victoria, Australia
Member Since: November 26, 2006
entire network: 608 Posts
KitMaker Network: 4 Posts
Posted: Thursday, May 04, 2017 - 05:54 PM UTC
Beautiful Job!

Imagine the drag all those cables must have created!

Cheers,

Hugh
Xirrcom
Visit this Community
Gdańsk, Poland
Member Since: February 18, 2016
entire network: 92 Posts
KitMaker Network: 0 Posts
Posted: Friday, May 05, 2017 - 01:15 AM UTC

Quoted Text

Oh wow, well done. Kept getting better with each post!


Sorry if I missed it, but how did you get that effect on the aluminum?



Hi Matt,
Thanks! As it goes for the aluminium effect what I did is first primed with glossy black, next coat is shiny aluminium (I use Alclad, but you can do it with any brand of your choice - important is that shiny part . Next you use the same shiny aluminium paint and add a bit of matt white - not much just to make visible difference. With a brush make a pattern. As finish you can cover whole with clear cote but it might not be required - have to assess by yourself.

Cheers Bart
Scrodes
Visit this Community
Ontario, Canada
Member Since: July 22, 2012
entire network: 771 Posts
KitMaker Network: 6 Posts
Posted: Friday, May 05, 2017 - 04:11 AM UTC
wow, very cool. Which flat white did you add to the alclad? Did you apply it by brush at that point, or did you airbrush in a squiggle pattern?.

Fascinating technique.
